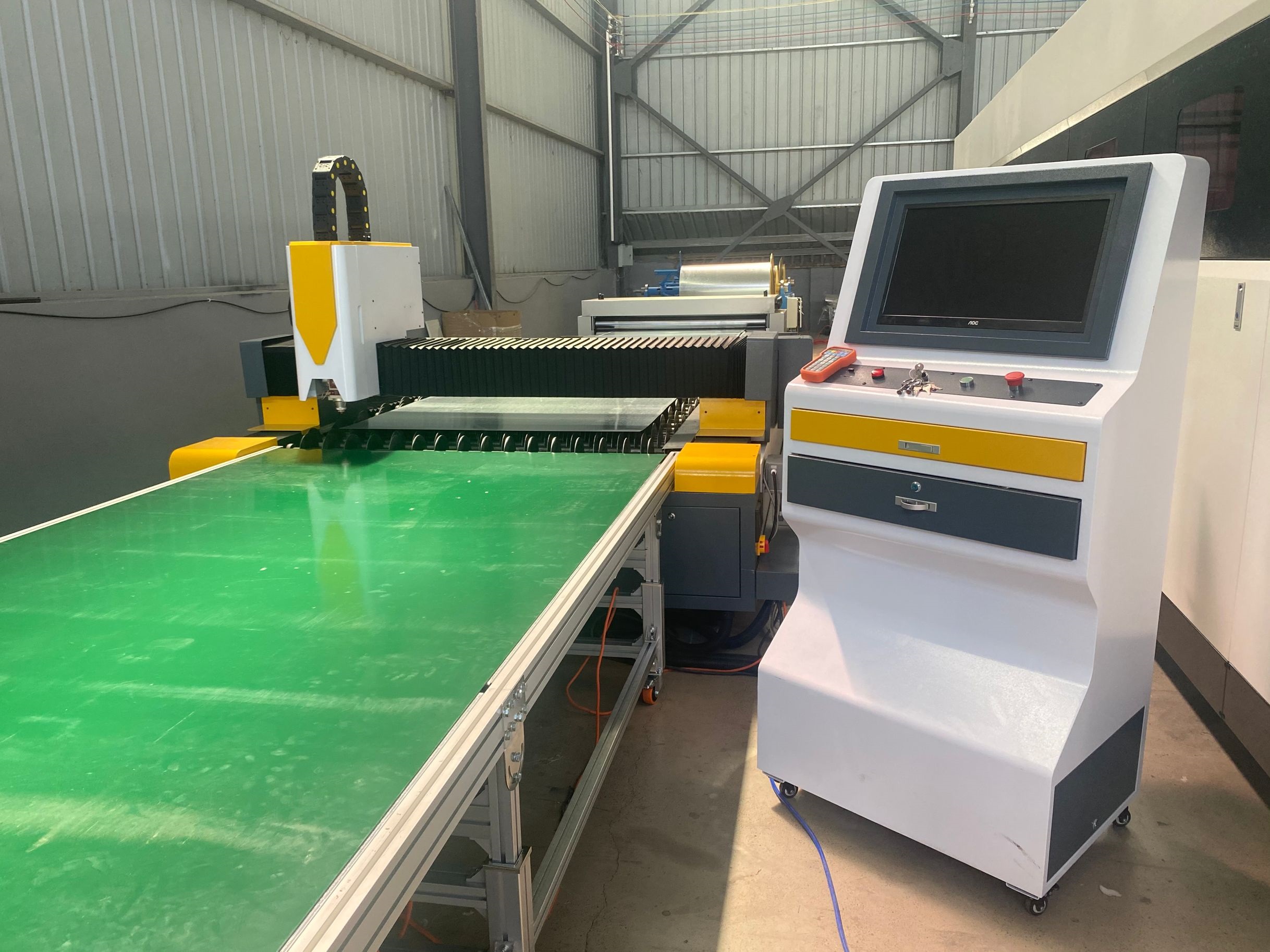

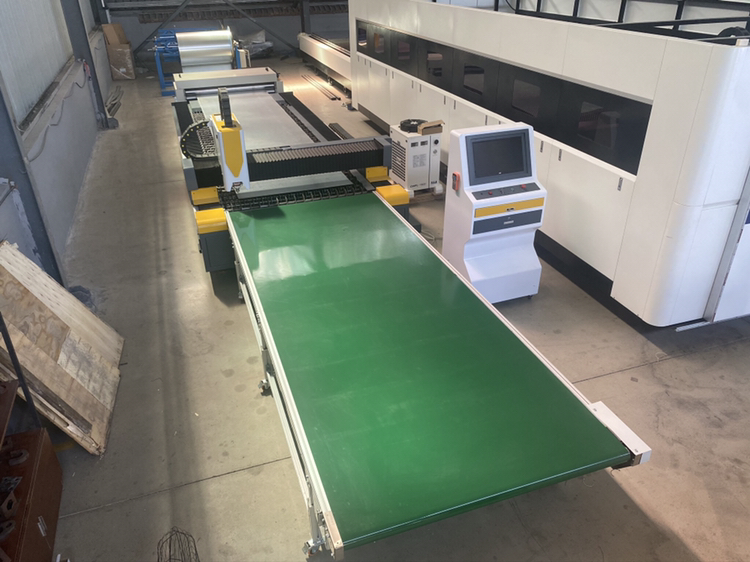

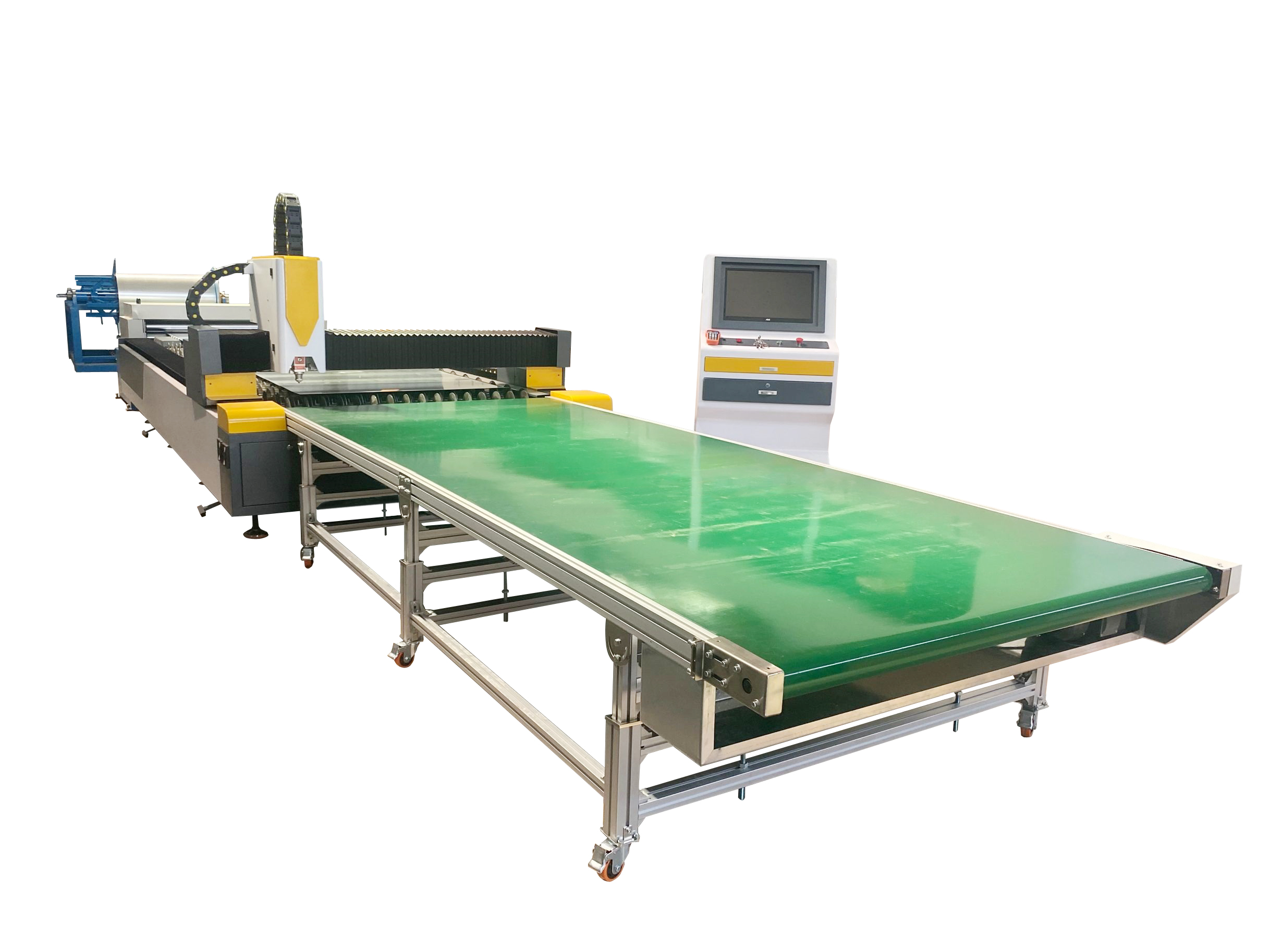

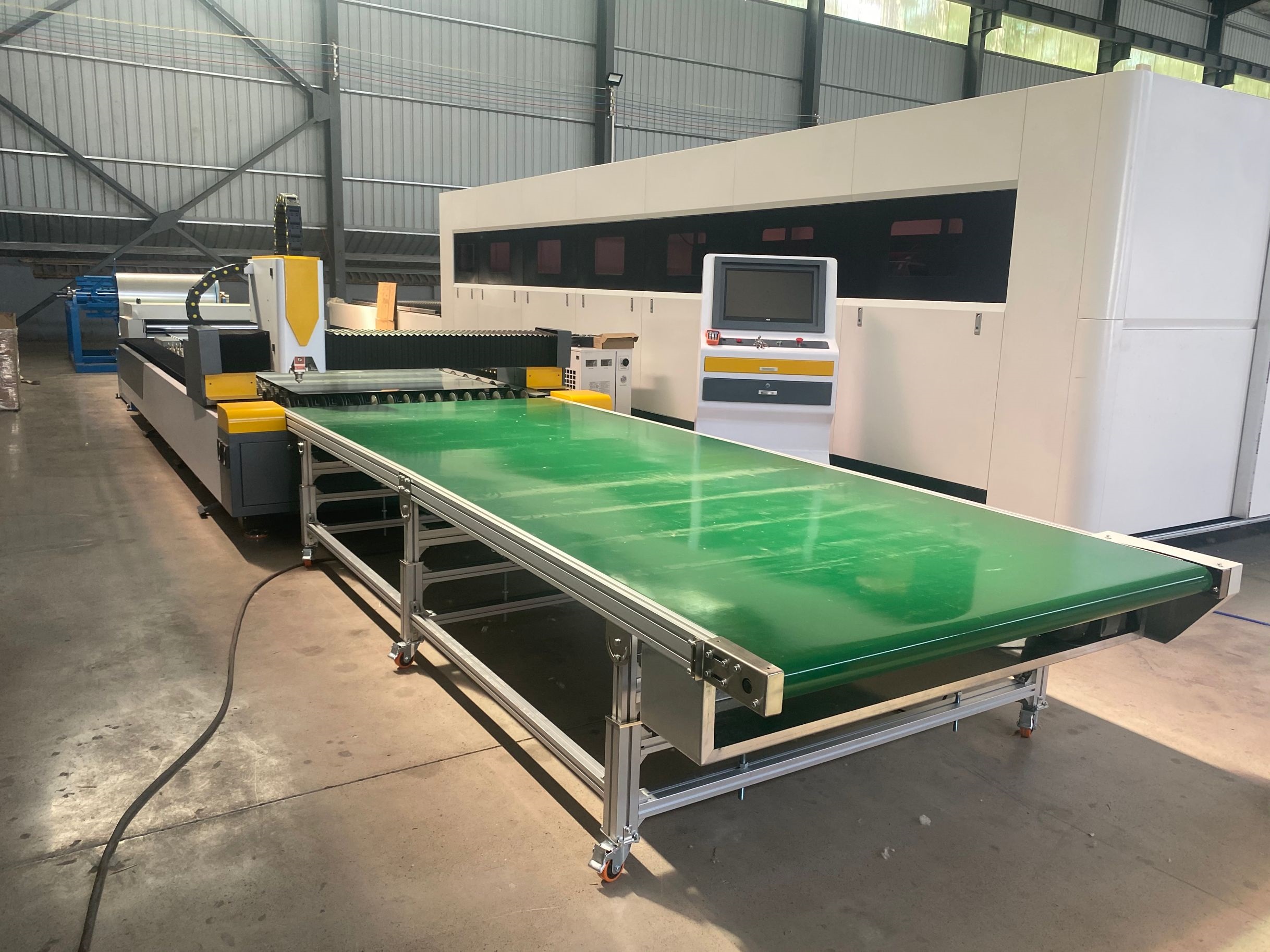

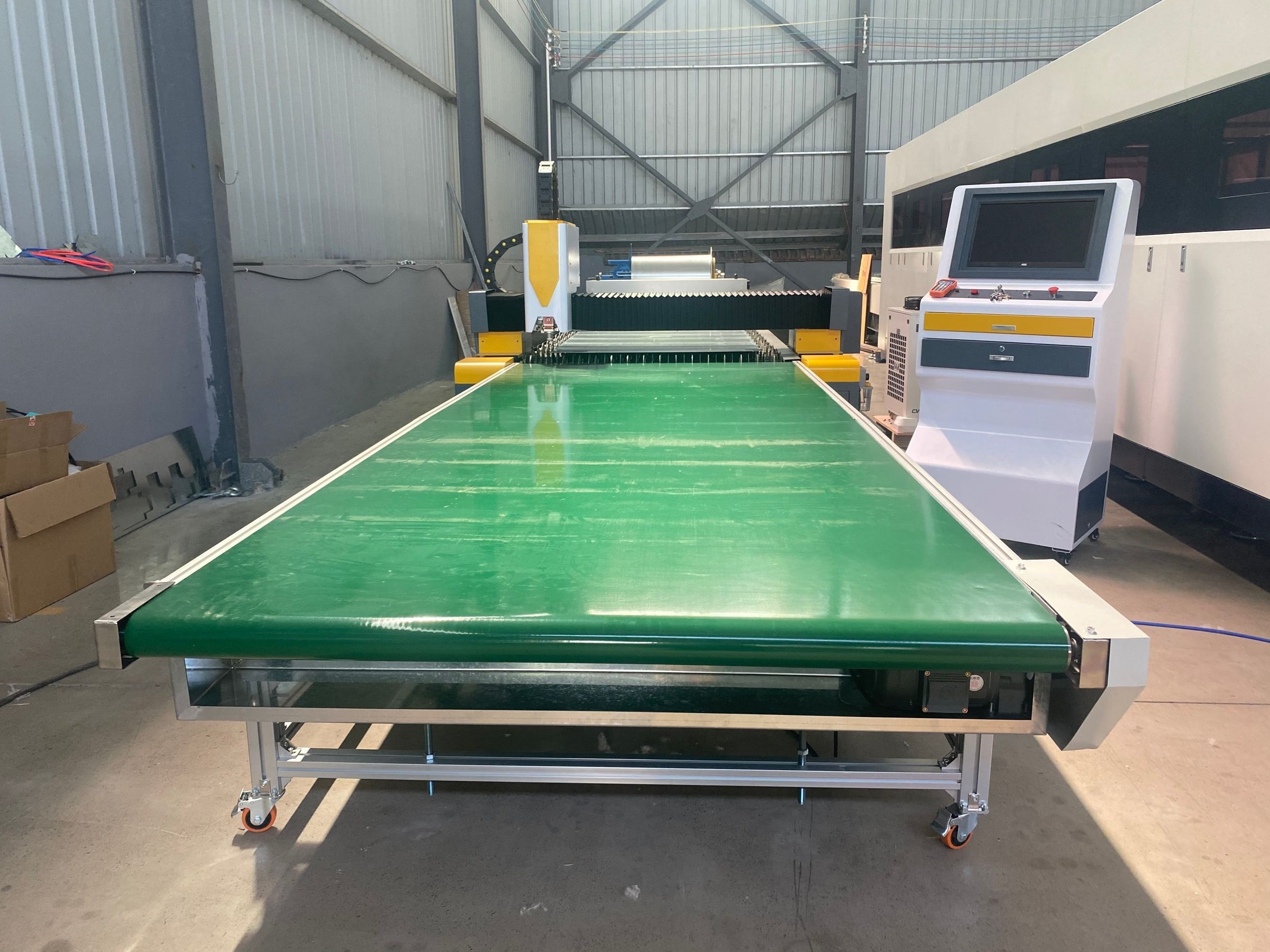

Rolling platform laser cutting machine

Category:
Description

The rolling platform laser cutting machine is a professional production line specially designed for large-scale fan duct factories or sheet metal processing factories to cut coiled materials in large quantities and with high efficiency. It can take every step from roll storage to flattening, cutting, and collecting into consideration, and combines all these functions in one machine in an orderly manner.

Model:

4015/6015

Machine working area:

4000x1500mm/6000x1500mm

Laser Power:

1500W

Machine system:

NC studio

Cutting accuracy:

±0.1

Positioning accuracy:

±0.02

Machine weight:

4000kg

Auxiliary gas:

Compressed air/nitrogen/oxygen

Working voltage:

380V three-phase electricity

Cooling method:

Water cooling

Cutting thickness:

0.2-3mm

Maximum speed:

50m/min
