Roller bed cutting machine

Get a Quote
Category:
Description

This machine can cut extra-large diameter round tubes with a diameter of up to 2m, and it can also perform bevel cutting. The machine is supported by multiple rollers, making it stable and safe. The rollers can be split and packaged for more economical shipping costs. Laser or plasma cutting options are available.

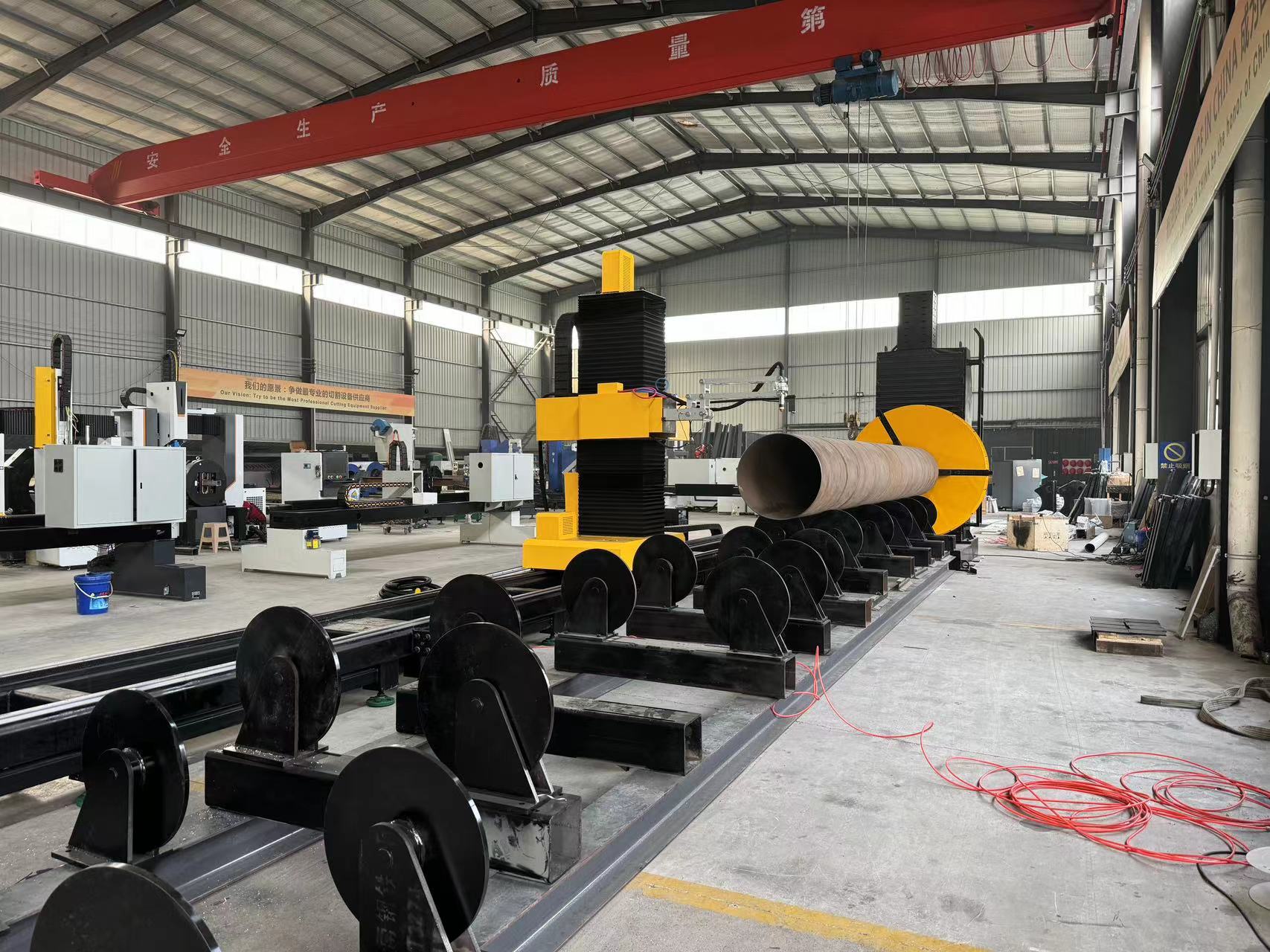

微信图片_20240102140427

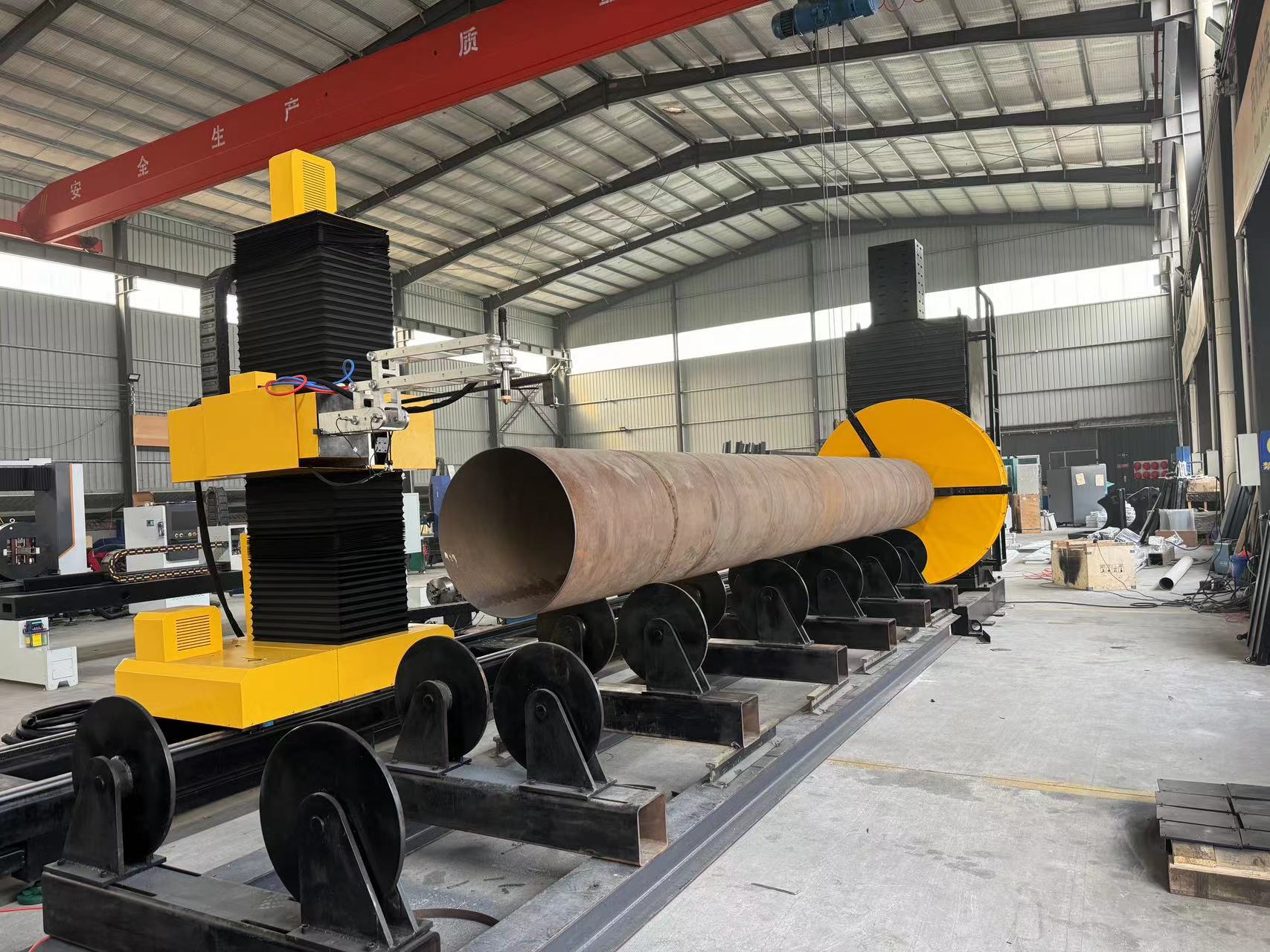

微信图片_20240102140430

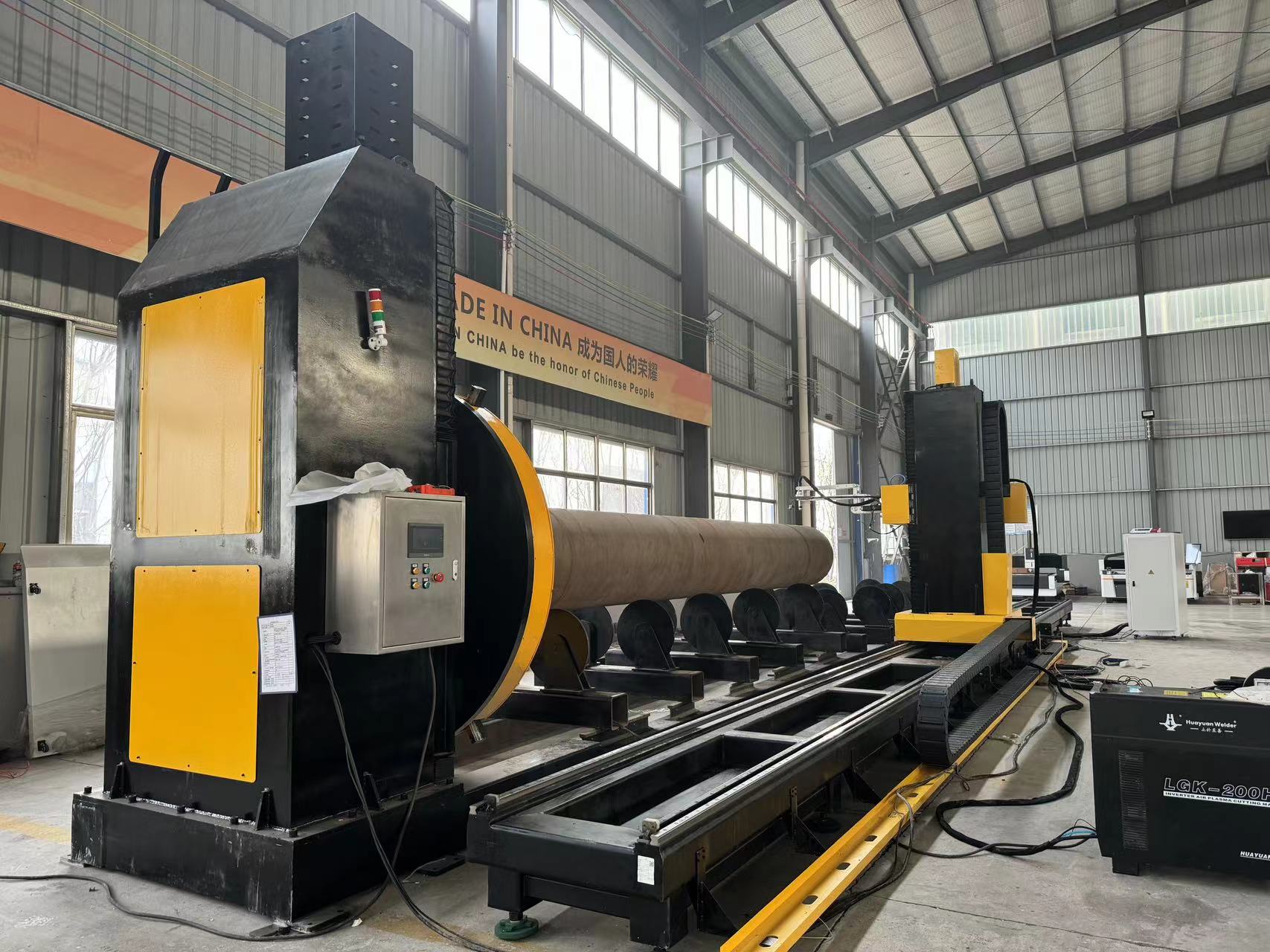

微信图片_20240102140439

Model:

6012/12012/20012

Machine working area:

600x12000mm/1200x12000mm/2000x12000mm

Plasma Power:

160A

Machine system:

EOE

Cutting accuracy:

±0.2

Positioning accuracy:

±0.05

Machine weight:

9000kg

Auxiliary gas:

Compressed air

Working voltage:

380V three-phase electricity

Cutting material:

Round tube

Cutting thickness:

0.2-30mm

Maximum speed:

50m/min
