OLT-2460 Laser Tube Cutting Machine

Get a Quote
Category:
Description

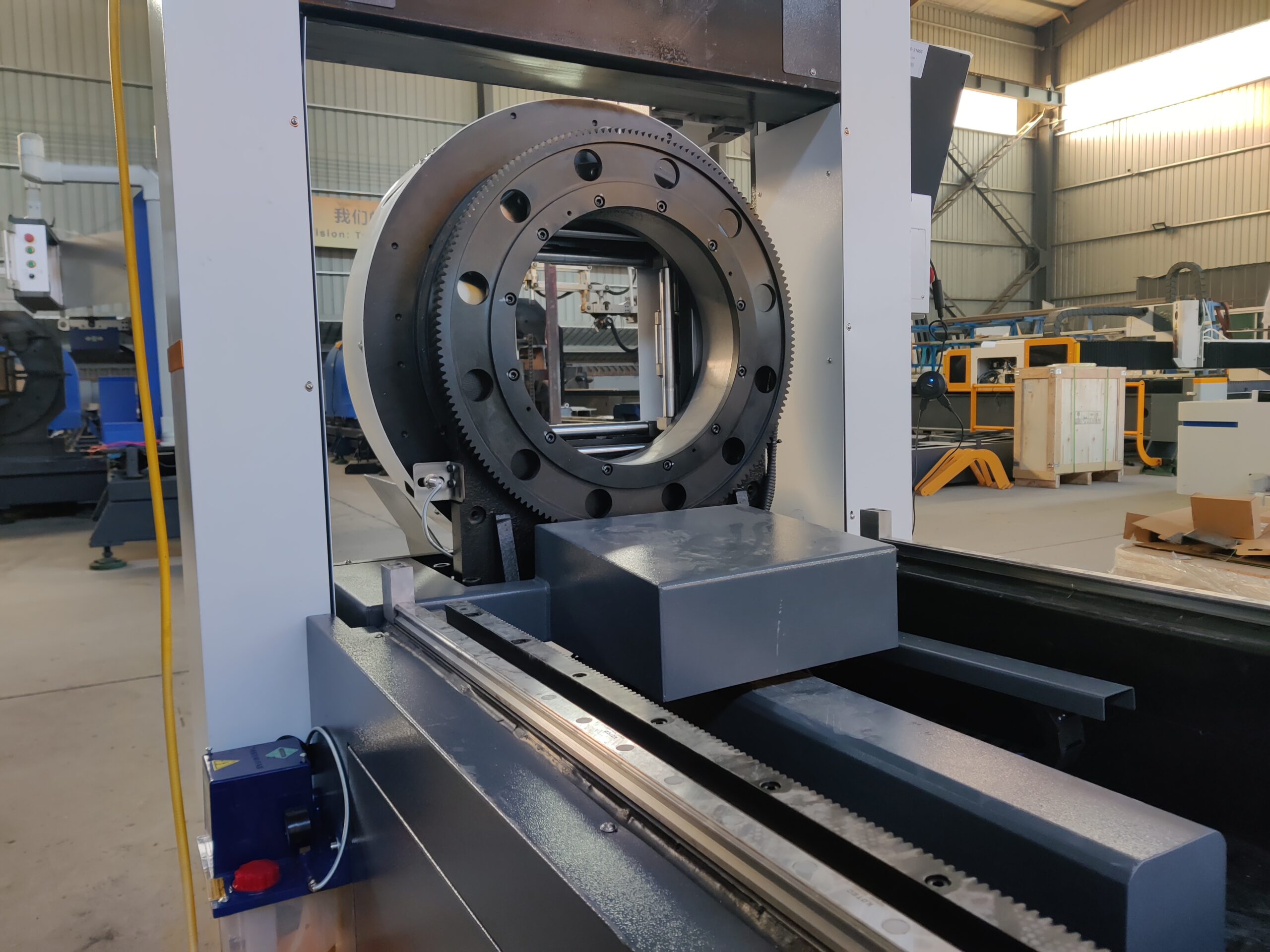

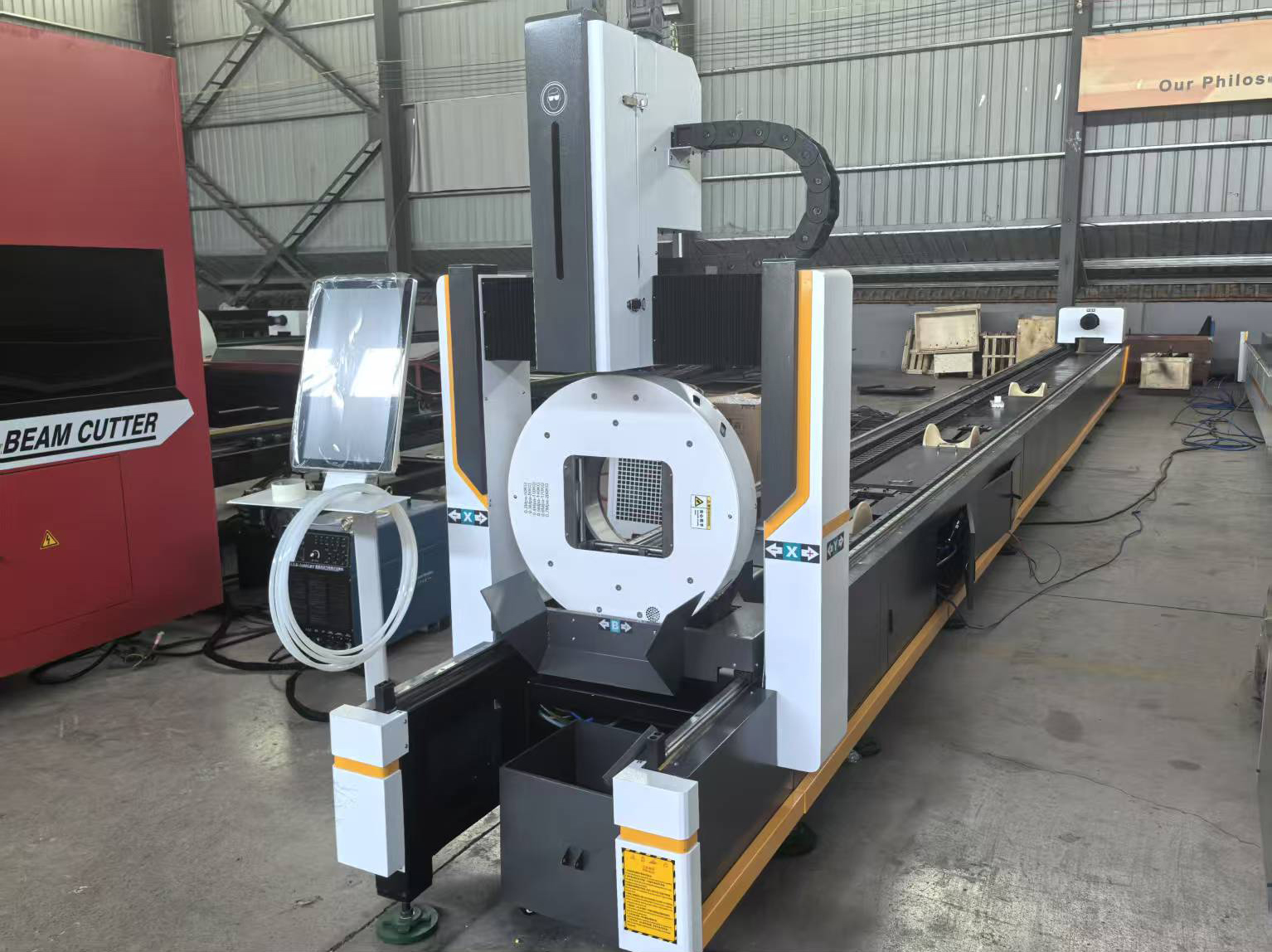

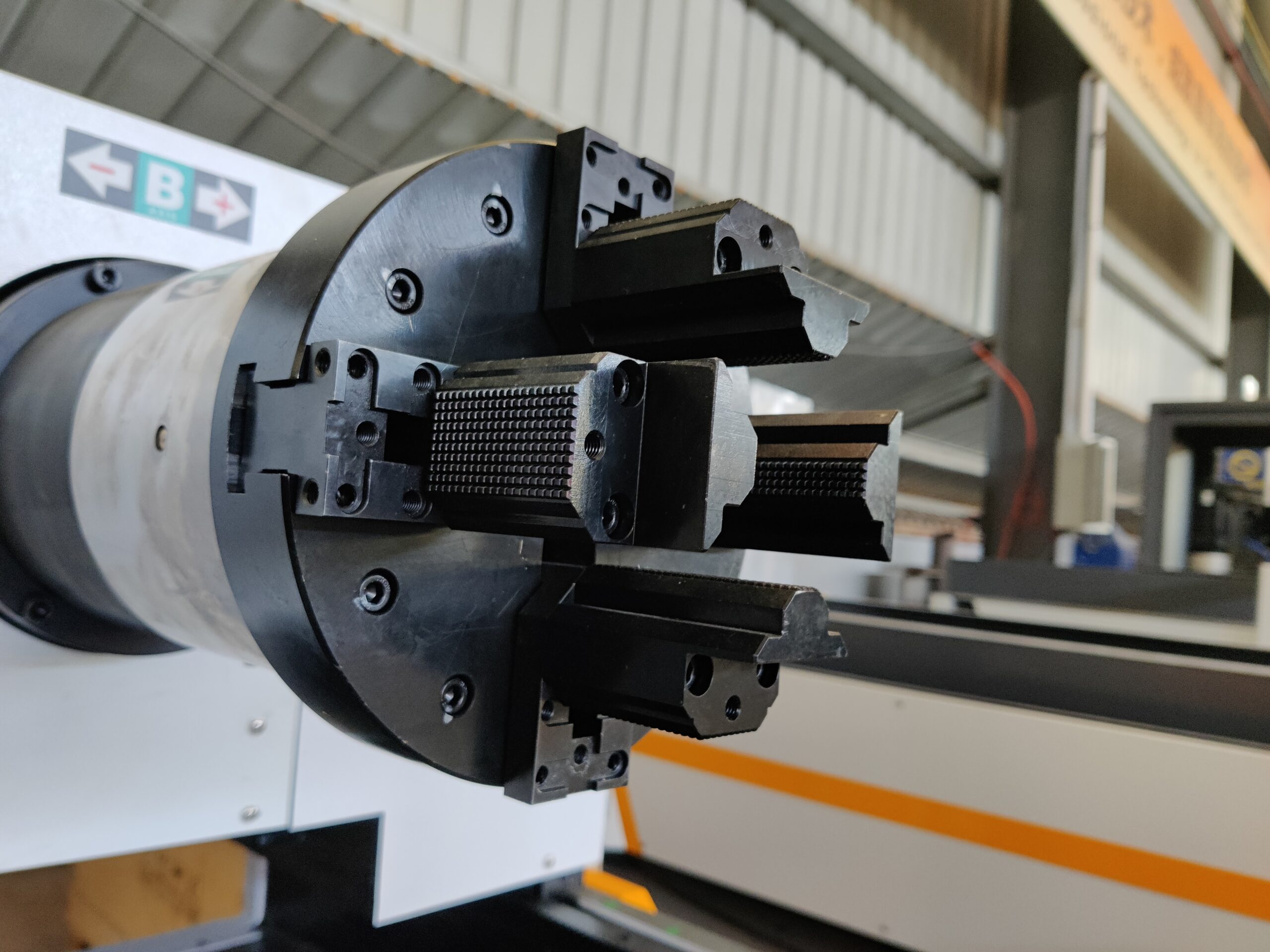

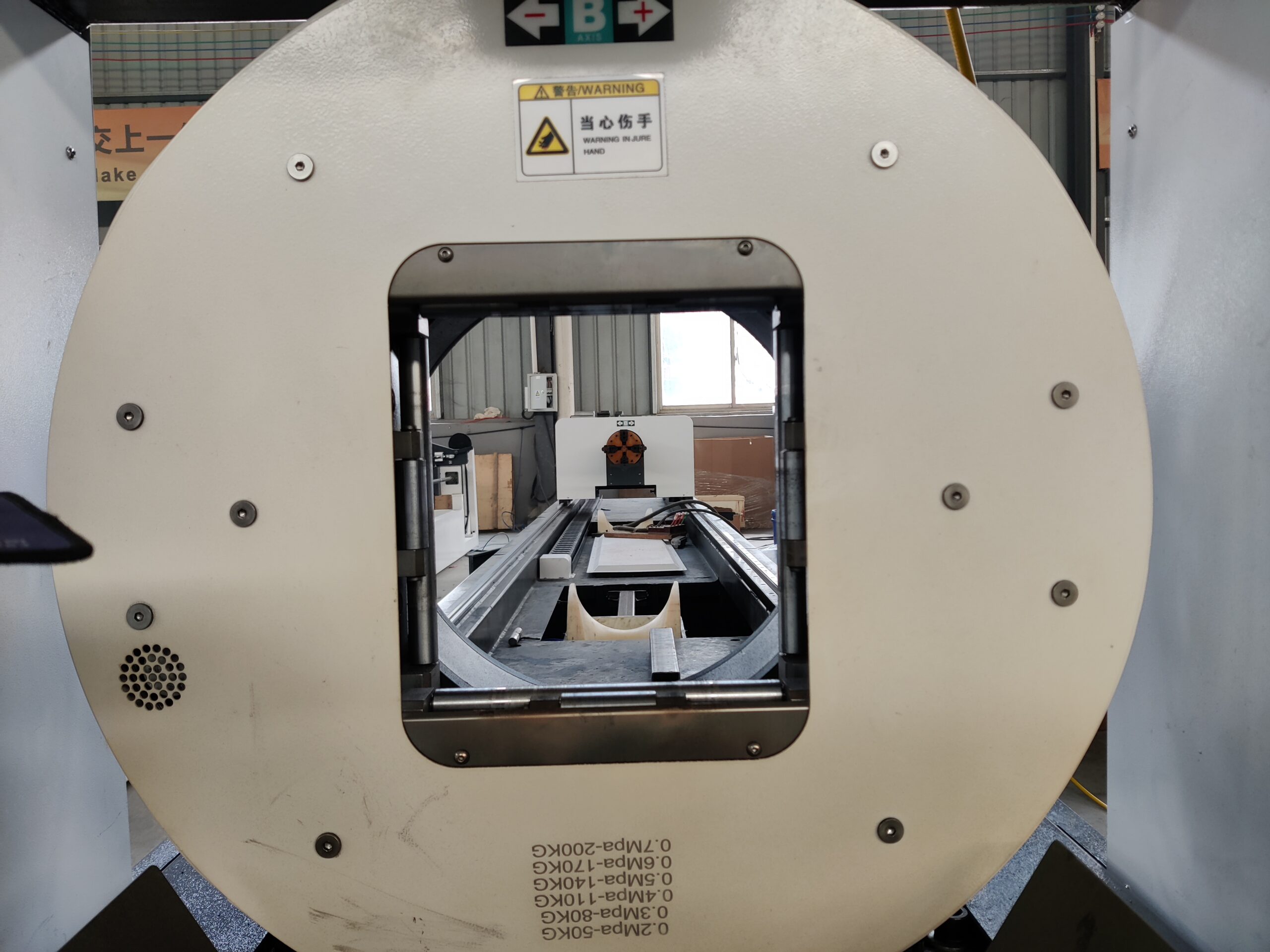

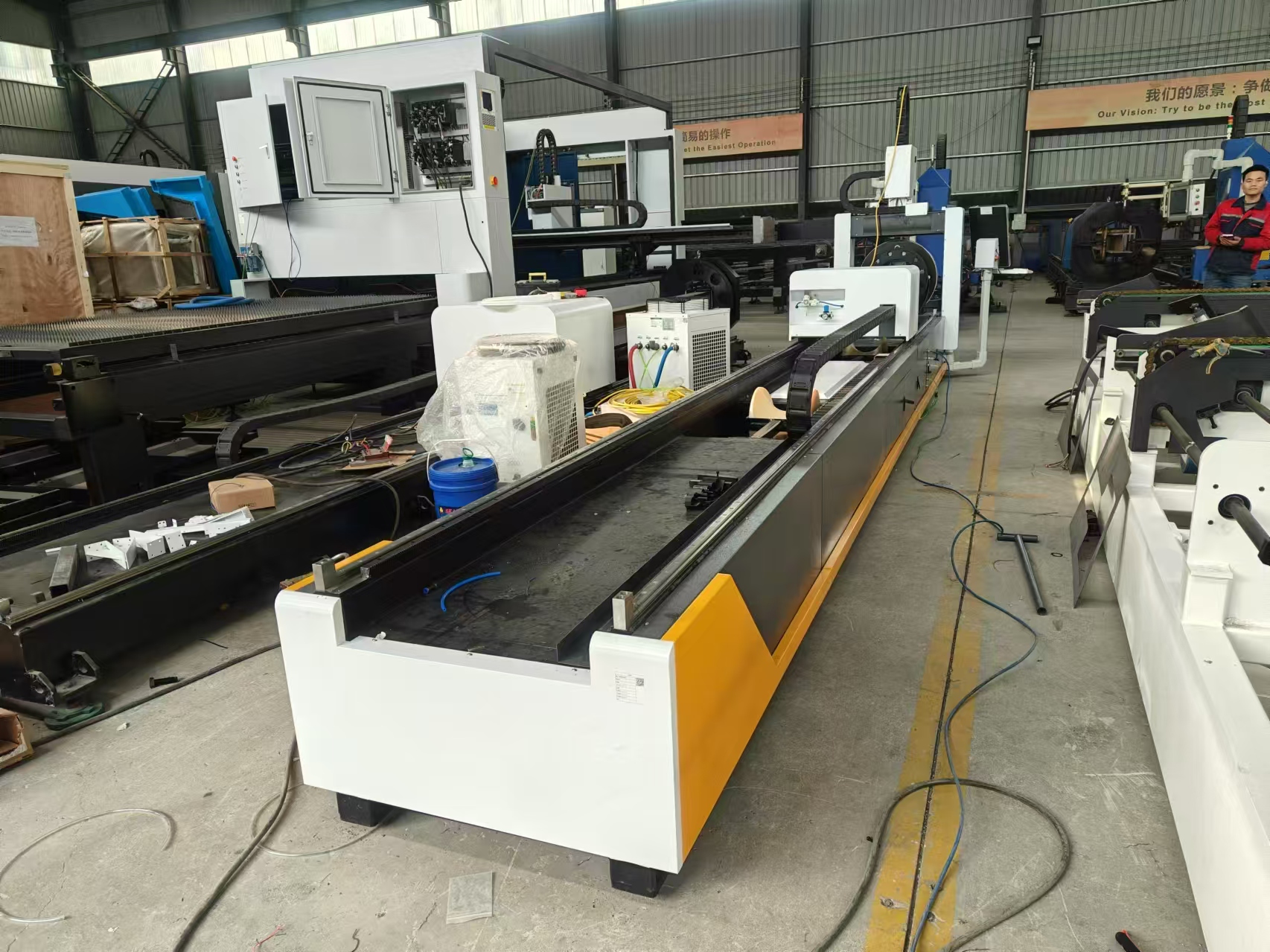

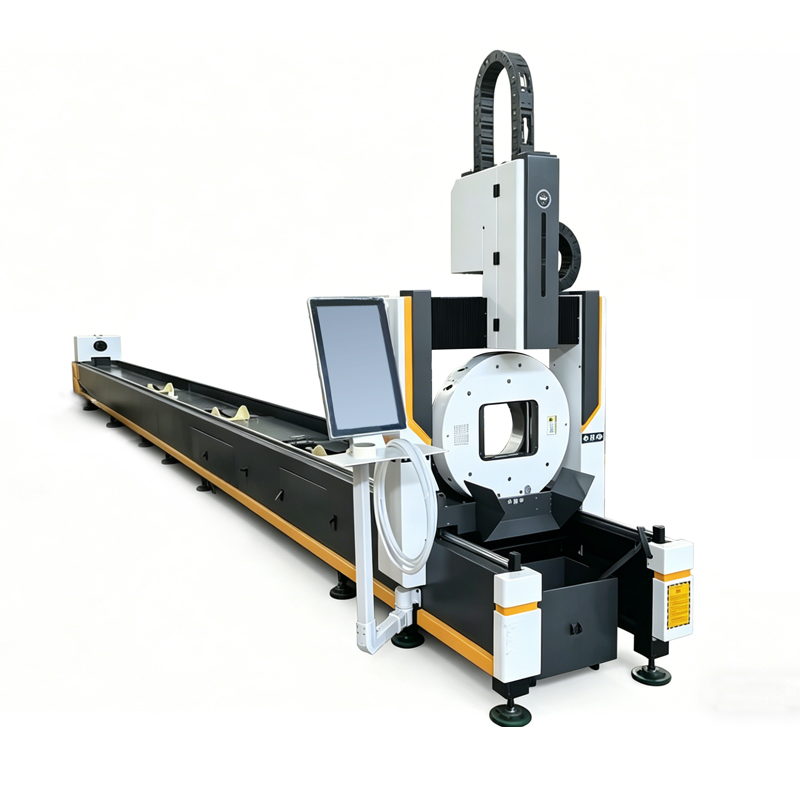

This best-selling laser tube cutting machine is designed for processing small-to-medium-sized tubes. It features a 240x240mm square pneumatic chuck. The standard model handles 6-meter-long round tubes, square tubes, angle iron, channel steel, and H-beams with diameters or dimensions up to 240mm. Optional features include automatic loading/unloading and beveling capabilities.

微信图片_20250618104652
微信图片_20250618104702
微信图片_20250618145223
微信图片_20250618145442
微信图片_20250618145822
微信图片_20250729165144_2

Model:

2460

Machine working area:

240x6000mm

Laser Power:

1500W/3000W/6000W/

Machine system:

EOE

Cutting accuracy:

±0.2-0.65mm

Positioning accuracy:

±0.02mm

Machine weight:

3000kg

Auxiliary gas:

Compressed air/nitrogen/oxygen

Working voltage:

380V three-phase electricity

Cooling method:

Water cooling

Cutting thickness:

0.2-20mm

Maximum speed:

70m/min
