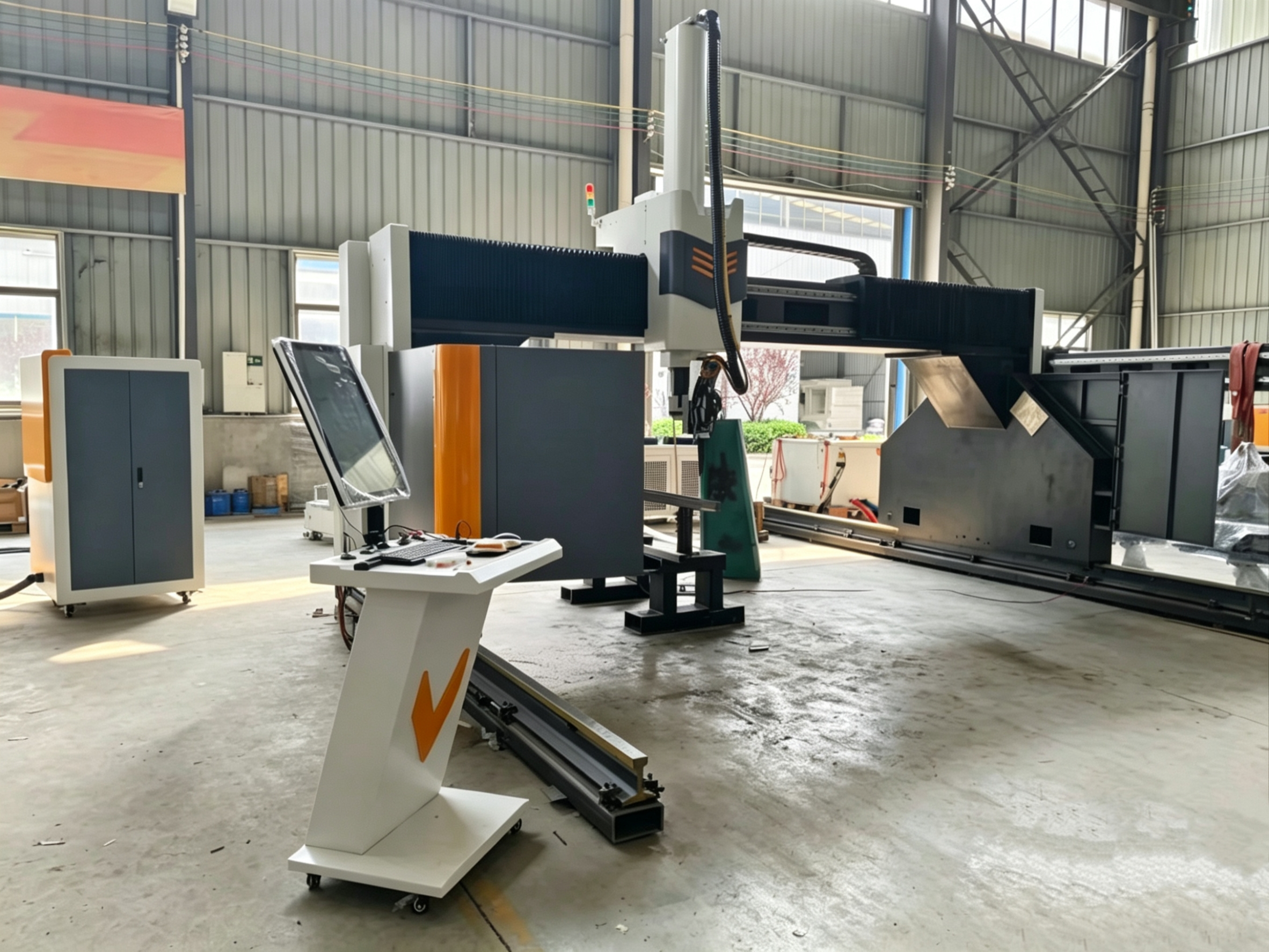

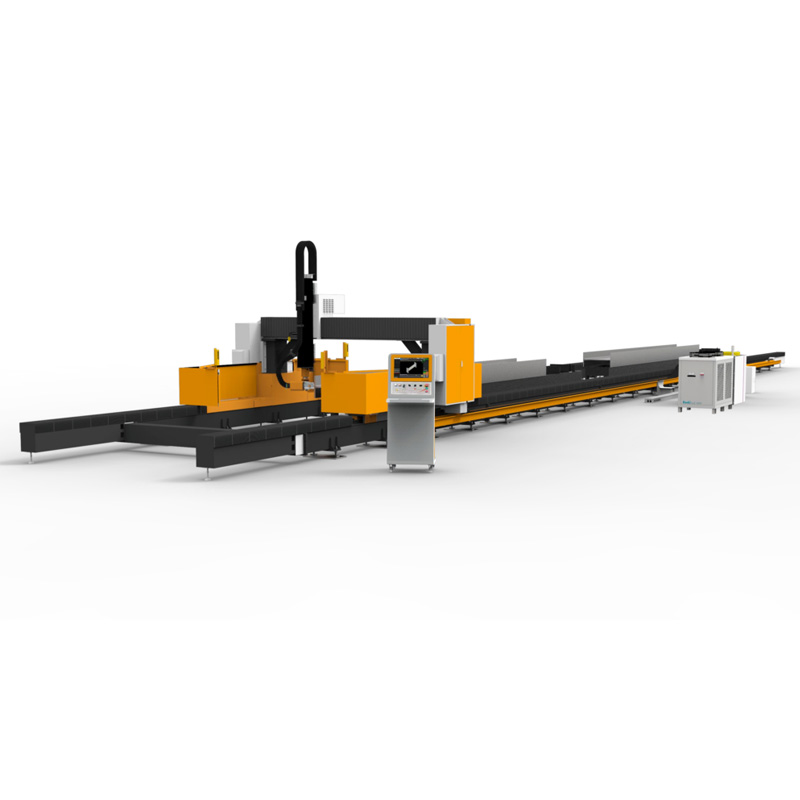

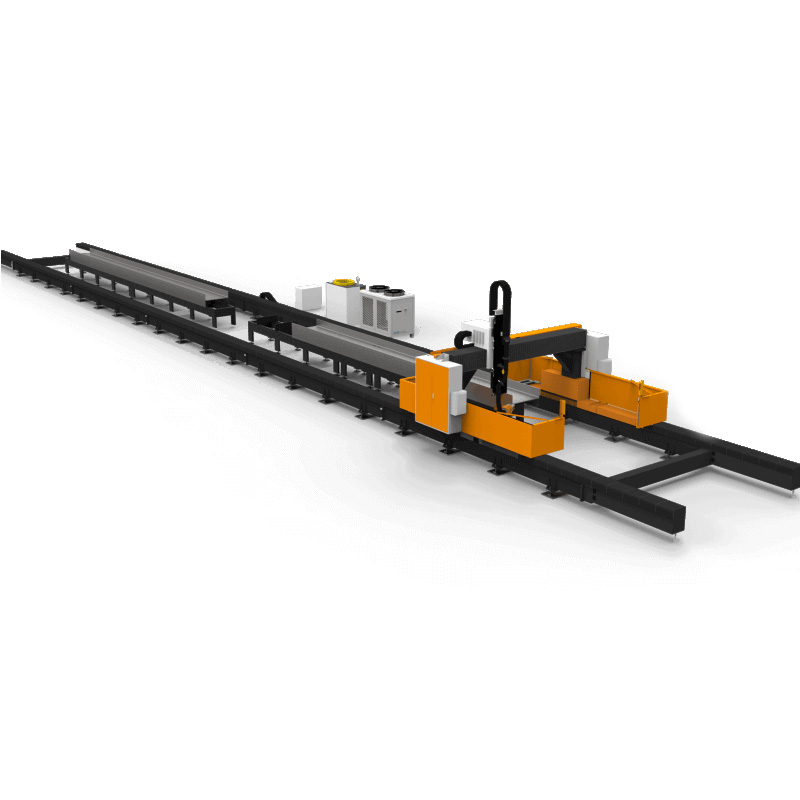

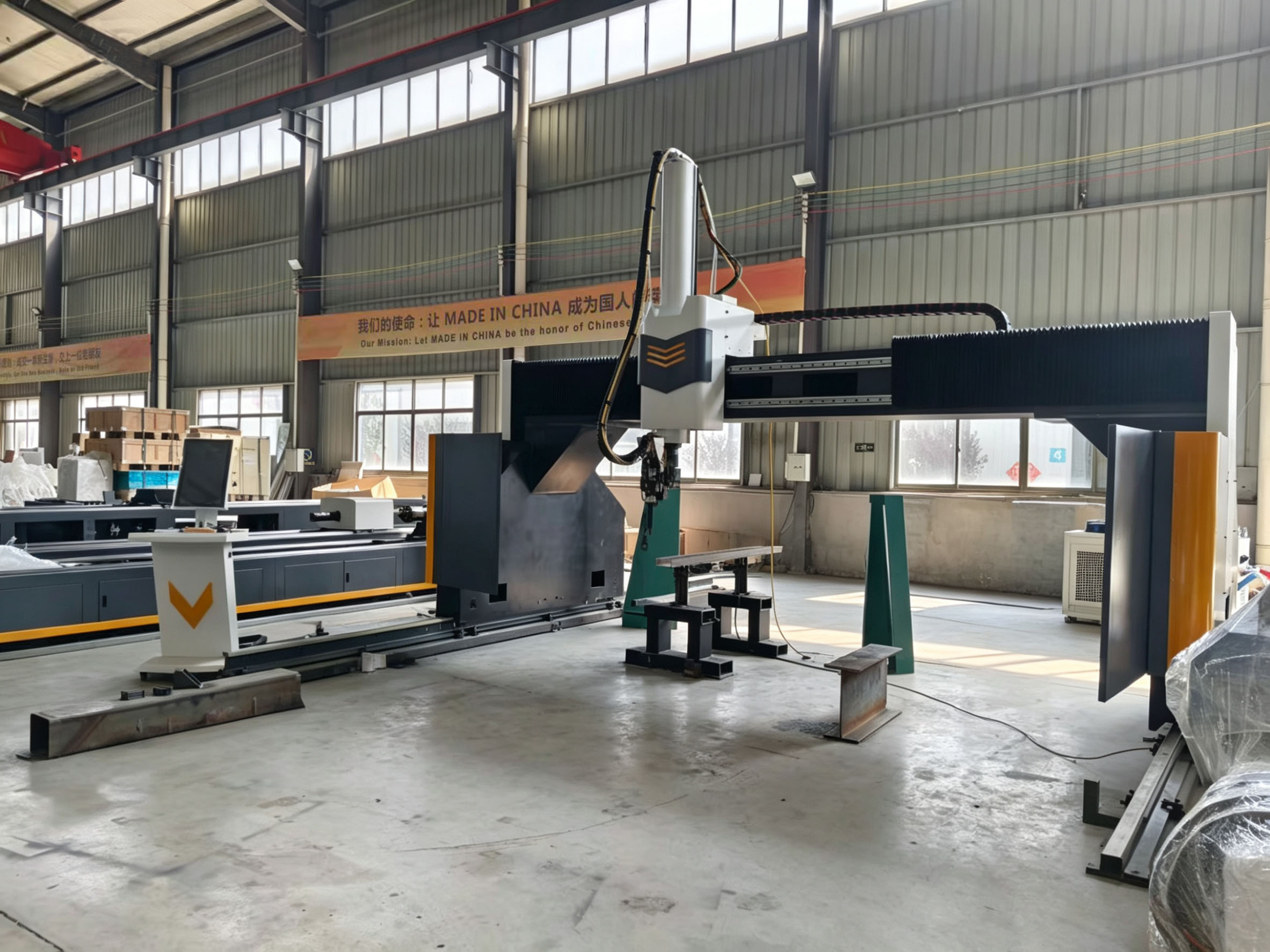

H-beam and metal plate composite cutting machine

Category: Sheet & Tube Laser Cutting Machine

Description

This is an industrial-grade laser cutting machine capable of cutting large-sized H-beams and plates. It features built-in beveling capabilities and offers an optional chuck for pipe cutting, truly enabling a single machine to process three types of materials.

${"data":{"pictureId":"27413765882d4cecbc4d55c81e6c6609","appversion":"14.4.0","stickerId":"","filterId":"","infoStickerId":"","imageEffectId":"","playId":"","activityName":"","os":"android","product":"retouch","originAppId":"2515","exportType":"","editType":"","alias":"","enterFrom":"enter_launch","capability_key":["erase"],"capability_extra_v2":{"erase":[{"panel":"eliminatePen"}]},"effect_type":"tool","effect_id":"erase"},"source_type":"douyin_beauty_me"}$

Model:	3012/3026	Machine working area:	3000x12000mm/3000x26000mm
Laser Power:	12000W/20000W/30000W	Chuck size:	Optional
Cutting accuracy:	±0.1	Positioning accuracy:	±0.02
Machine weight:	8000kg	Machine system:	EOE
Working voltage:	380V three-phase electricity	Auxiliary gas:	Compressed air/nitrogen/oxygen
Cutting thickness:	0.2-60mm	Maximum speed:	70m/min
