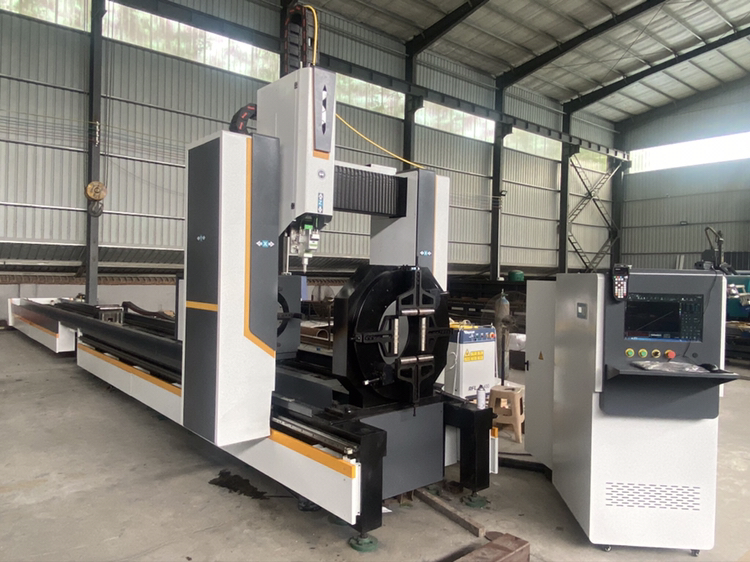

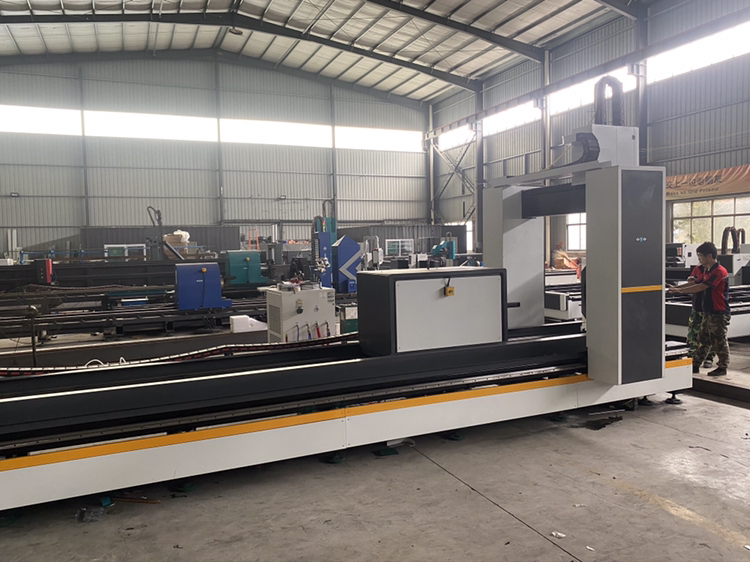

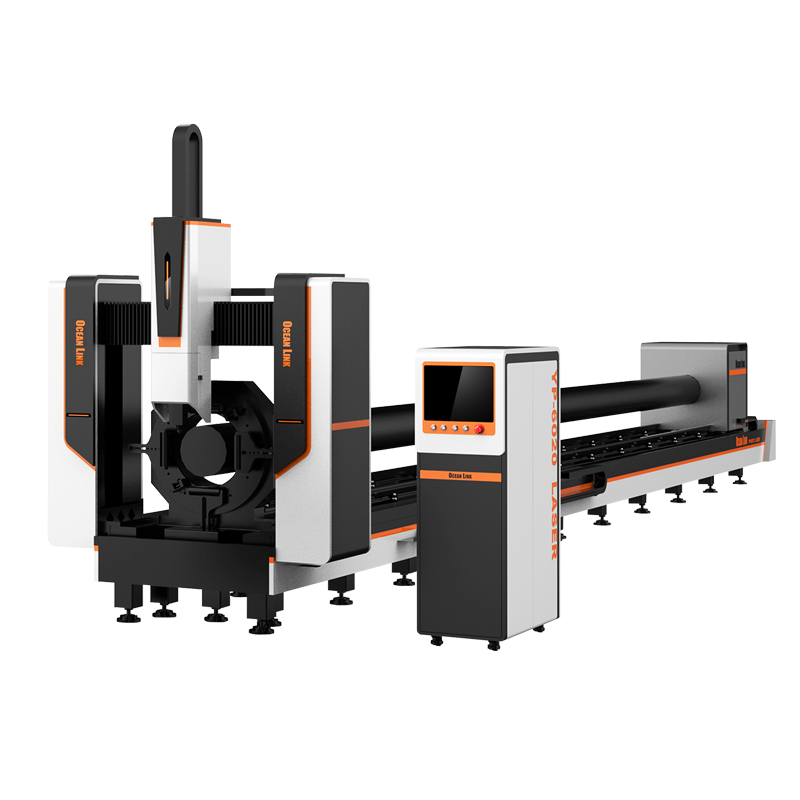

5-axis fiber laser cutting machine

Description

This five-axis laser pipe cutting machine is the benchmark product of our company, and also the benchmark product of the entire industry.

It is specially used for high-precision cutting of metal round pipes, square pipes, channel steel, angle steel, H-shaped steel and other pipes and profiles. The section diameter of the cutting material can reach 800mm, and the length of the material can reach 12m. It is suitable for steel structure industry, elevator industry, amusement facility industry and other industries.

Model:

3612/5212/6412

Machine working area:

360x12000mm/520x12000mm/640x12000mm

Laser Power:

2000W/3000W/4000W/6000W/12000W

Machine system:

NC studio

Cutting accuracy:

±0.1

Positioning accuracy:

±0.02

Machine weight:

9000kg

Auxiliary gas:

Compressed air/nitrogen/oxygen

Working voltage:

380V three-phase electricity

Cooling method:

Water cooling

Cutting thickness:

0.2-20mm

Maximum speed:

50m/min
